제품 상세 정보:
|
| 이름: | 하는 박스에게 입히기 위한 LS-T430 자동 페이퍼 향기 박스 코너 도배기 | 컬러: | 블랙 앤드 화이트 |
|---|---|---|---|
| 타입: | 다중 기능 패키징 머신 | 보증: | 1년이요 |
| 동작 속도: | <75 pcs=""> | 구동 방식: | 전기 & 공압 |
| 차원(L*W*H) :: | L1650*W1300*H1960mm | 중량의 기계: | 920 킬로그램 |
| 자동 등급: | 자동장치 | ||
| 강조하다: | 용지함 코너 도배기,향기 박스 코너 도배기 |
||

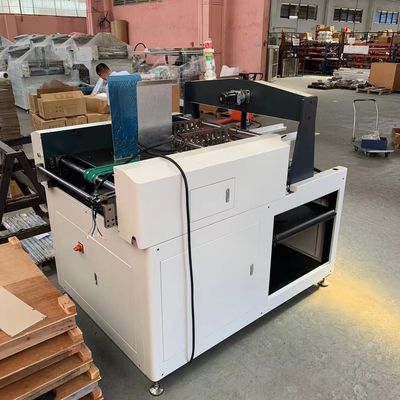

LS-T430 Automatic Paper Perfume Box Corner Pasting Machine For Clothing Box Making
Introduction:
LS-T430 Automatic Paper Perfume Box Corner Pasting Machine For Clothing Box Making is applied to pasting the four corners of die cutting cardboard and v-slots grooving cardboard. This machine use belt feeding way to convey coardboard to punching area. Shorten feeding distance and increase the working speed. It can use paper tape, plastic tape and kraft tape. The max working speed is 75 pcs/min, it able to paste normal rigid box and slant side box, paste twice for high box. Whole machine is 1650*1300*1960mm. Small and easy to be movement. It is suitable to combine with semi-automatic rigid box making line.
The Full automatic Corner Pasting Machine adopts PLC programmable controller, touch screen man-machine interface, automatic function parameter setting and the fault display,improve the production efficiency. Suitable for all kinds of paper box, such as cell phone box,gift box, tea box and etc.
| Type | LS-T430 |
| Box size (Max) | L600*W400*H120mm |
| Box size (Min) | L80*W65*H15mm |
| Max cardboard size | L700*W500mm |
| Min cardboard size | L100*W80mm |
| Working speed | <75 pcs/min |
| Motor power / voltage | 2kw/380V |
| Air supply | 10L/min 0.6Mpa |
| Machine dimension | L1650*W1300*H1960mm |
| Weight of machine | 920kg |
Our service:
1. Your inquiry related to our product & price will be replied within 24 hours
2. Well-trained & experienced staff are to answer all your inquiries in English
3. Working time: 8:00am ~18:00pm, Monday to Saturday. (UTC+8)
4. Customized solution & perfect after-sale service
5. For large order, engineer can be sent to your country for on-site mainternace instructions.
6. Our advantage: A.Competitive price. B.Good quality. C.Timely delivery. D. New model launch yearly.
